Description

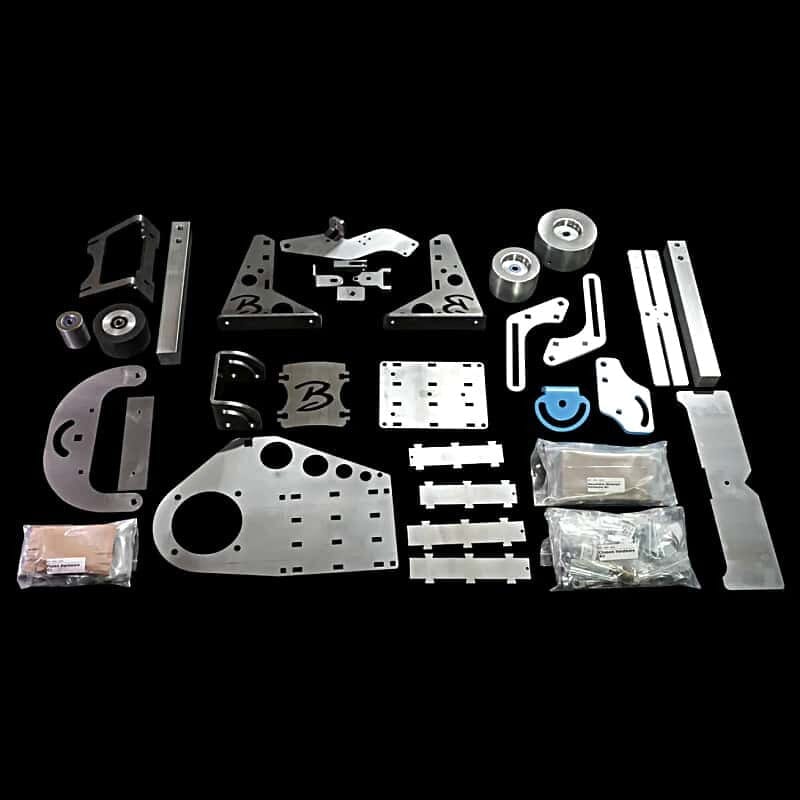

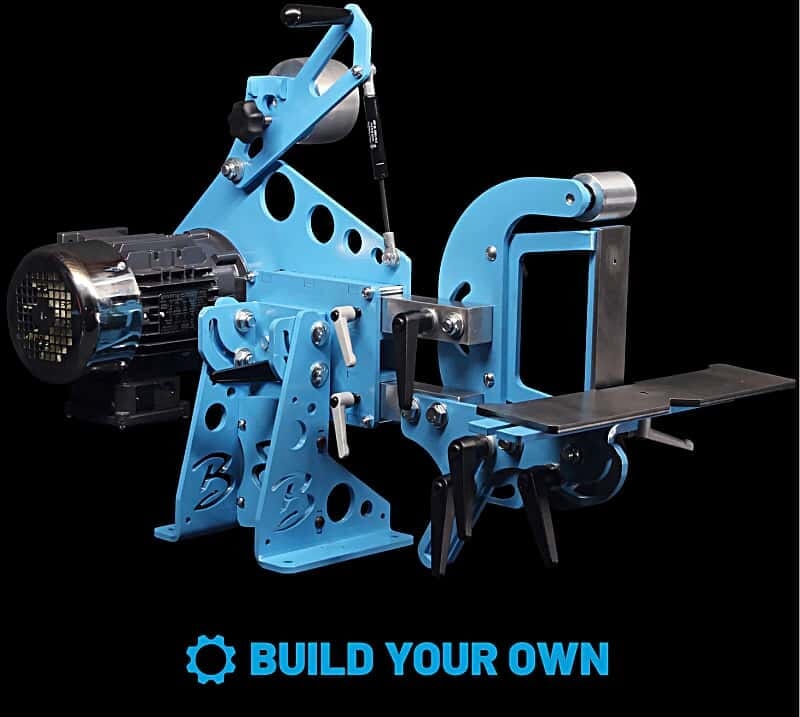

The chassis includes all parts & hardware items to assemble the grinder complete with 10” flat platen and over-sized fixed work rest. This kit includes aluminum wheels: 2” Platen, 4” Tracking, and 5” Drive with 5/8” bore (other sizes can be requested at an additional cost).
The Chassis is set up for a NEMA 56 and 145 face mount motor up to (base mount is no longer available). We cannot provide support for a motor that was not purchased through Brodbeck Ironworks. Please contact the manufacturer for any electrical questions.
Single Speed Option:
1.5 HP 115/230V 1-Phase 60 HZ 12.6/6.2A 3600 RPM TEFC
Includes on/off switch, junction box, wiring, and connectors.
Variable Speed Option:
KBAC 27D VFD 115V (household voltage) or 230V single phase input. 230V 3-Phase output (115V input reduces motor output from 2HP to 1.5HP). Variable Speed Wiring Kit includes start/stop switch, wiring, and connectors.
2HP 60 HZ 6.2/2.9A 3600 RPM TEFC
Variable Speed Wiring Kit includes on/off switch, wiring, and connectors.
NO welding is required for assembly.
Chassis arrives unpainted.
1-2 week lead time on unpainted grinders / 2-3 weeks on painted and assembled grinders. Free shipping in US. Currently NOT available for shipping outside of the US.
