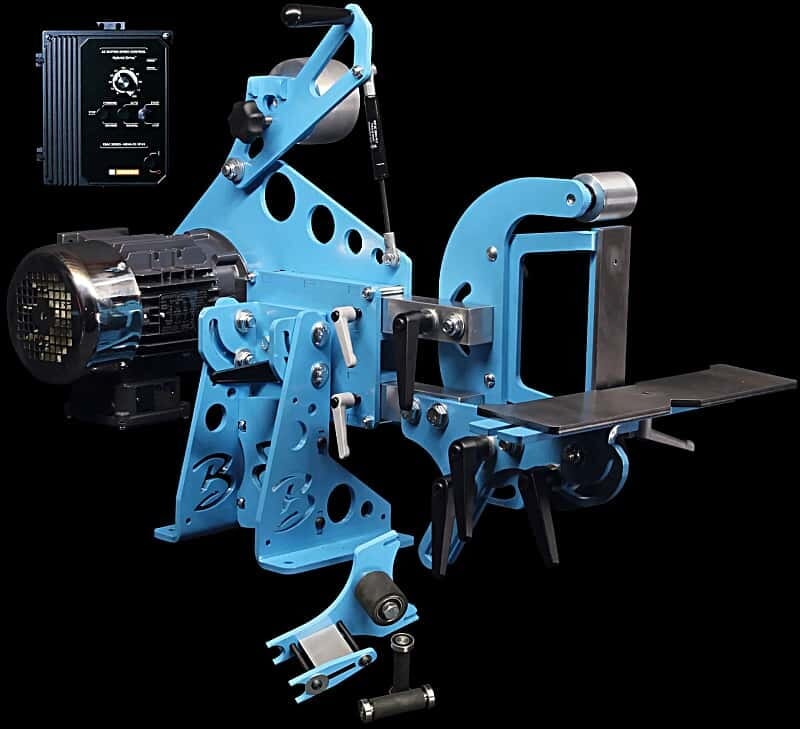

The Max Painted & Assembled Package includes 2 HP motor, VFD, and small wheel kit.
The chassis includes all parts & hardware items to assemble the grinder complete with Mareko platen and over-sized fixed work rest. This kit includes aluminum wheels: 2” Platen, 4” Tracking, and 5” Drive with 5/8” bore (other sizes can be requested at an additional cost).
Variable Speed Motor:
KBAC 27D VFD 115V (household voltage) or 230V single phase input. 230V 3-Phase output (115V input reduces motor output from 2HP to 1.5HP). Variable Speed Wiring Kit includes start/stop switch, wiring, and connectors.
2HP 230/460V 3-Phase 60 HZ 6.2/2.9A 3600 RPM TEFC
110V plug is included and wired.
220V plug is not included due to the various options of 220 outlets. Any 220 plug that matches the 220 outlet will work.
Small Wheel Kit:
Small Wheel Bracket, 3/4” Wheel, 1” Wheel, 2” Guide Wheel
Mareko Deep Platen Upgrade
The Mareko Deep Platen is a combination of a flat platen, 4” contact wheel, and slack belt attachment. It was designed by knifemaker Mareko Maumasi to provide maximum value and efficiency as it minimizes tool changes. The extra depth allows the user to work both sides of the platen without the tool arm interfering with the work. This is particularly important when removing stock and when contouring handles. This platen is a great alternative and cost reduction to having a dedicated flat platen and a contact wheel.
Adjustable Tool Rest Upgrade
The adjustable tool rest has been designed for maximum tilting in both directions as well as height adjustment. It is great for cutting false edges, bevels, clip points, octagonal handles, and fullers with our fullering tool. The tool rest is constructed of 5/16 and 3/8 thick plate steel to ensure durability and stability. The three-handle design was chosen to eliminate accidental rotation typically observed with other adjustable tool rest designs that use a round bar and set screws for adjustment. The adjustment handles also allow full adjustment without the need of tools for ease of use and maximum efficiency.
The chassis arrives assembled and painted.
Contact us if you have any questions.
1-2 week lead time on unpainted grinders / 2-3 weeks on painted and assembled grinders. Free shipping in US. Currently NOT available for shipping outside of the US.
